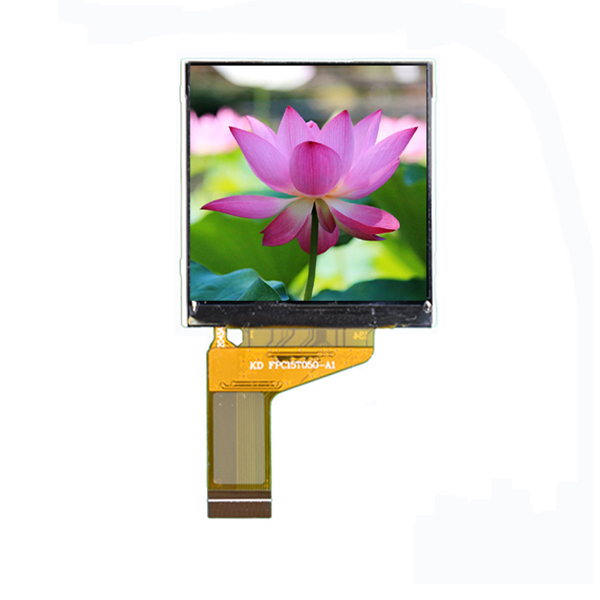

1.54 inch ips screen with 240*240 dots
1.54 inch ips screen with 240*240 dots

Product Name：1.54 inch ips screen with 240*240 dots

Product Description：

Model KD15T050-A
Size 1.54  inch ips inch
Display Mode Transmissive
 -
Resolution

240*240

dots

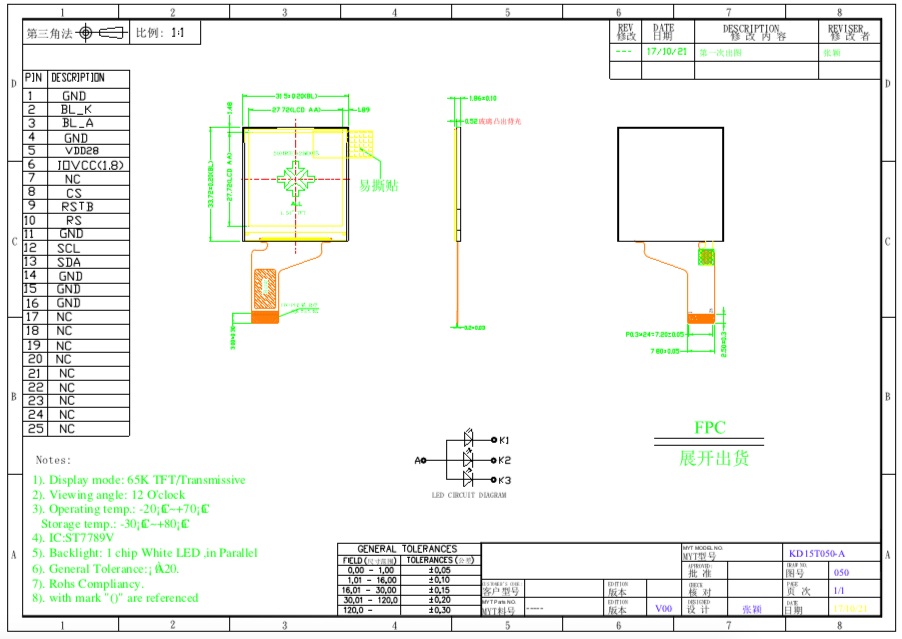

Dimensional outline

31.5(W)*33.72(H)*1.86 (T) (FPC not include)

mm
Active Area (A.A)

27.72(W)*27.72(H)

mm
Pixel size

0.1155(W)*0.1155(H)

mm
Viewing Direction

ALL o’clock

-
Touch panel
 Optional -
Driver IC

ST7789V or eqv

pcs
Input Data

SPI Parallel interface

-
Back-light 3 Chip white LED pcs
Operating temp.: -20℃~ +70℃ -
Storage temp.: -30℃~ +80℃ -


Packaging & Shipping

Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton
