Products > 1.22-1.77" TFT LCD > 1.22-1.77" TFT LCD

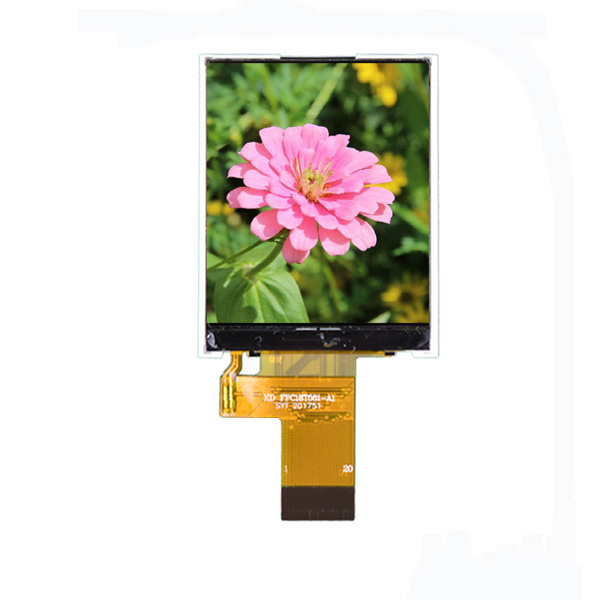

1.8 inch tft lcd module
1.8 inch tft lcd module

Product Name：1.8 inch tft lcd module

Product Description：


Send message / EMAIL US


Model KD18T561-A
Size 1.77  inch inch
Display Mode Transmissive
 -
Resolution

128*160

dots

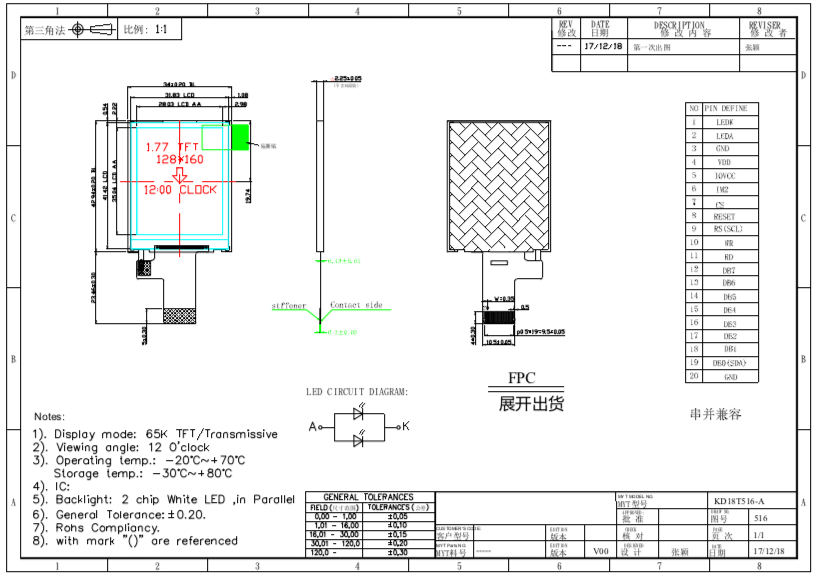

Dimensional outline

34.0(W)*42.94(H)*2.25 (T) (FPC not include)

mm
Active Area (A.A)

28.03(W)*35.04(H)

mm
Pixel size

0.219(W)*0.219(H)

mm
Viewing Direction

12 o’clock


-
Touch panel
 Optional -
Driver IC

ST7735S or eqv

pcs
Input Data

8080 8Bits Parallel interface/SPI

-
Back-light 3 Chip white LED pcs
Operating temp.: -20℃~ +70℃ -
Storage temp.: -30℃~ +80℃ -



Packaging & Shipping

Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton
