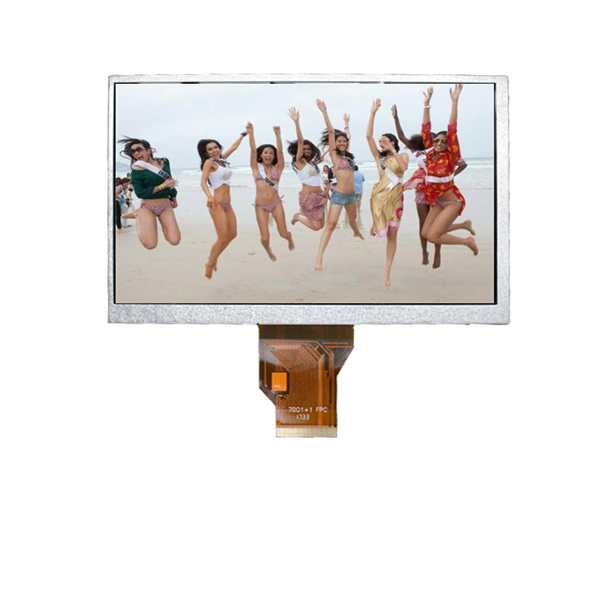

7 inch tft lcd display with TTL interface
7 inch tft lcd display with TTL interface

Product Name：7 inch tft lcd display with TTL interface

Product Description：

Model KD070QE50SD2
Size 7 inch landscape TN inch
Display Mode Normally White -
Resolution

800(H)*3(RGB)*480(V)

dots

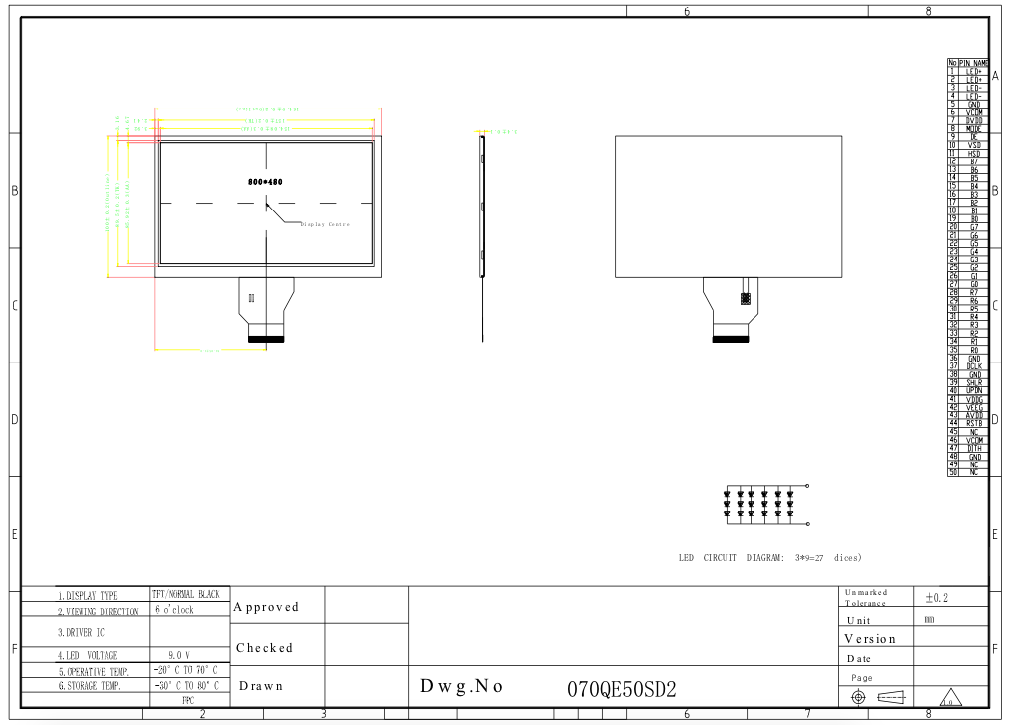

Dimensional outline

164.9x100x3.5 (FPC not include)

mm
Active Area (A.A)

154.08(W)x85.92(H)

mm
Pixel size

0.1926(W)x0.1790(H)

mm
Viewing Direction

6 o’clock

-
Touch panel
 Optional -
Input voltage

3.3

V
Input Data

TTL

-
Luminance(cd/m2) 500 typ

Cd/m2

Operating temp.: -20℃~ +70℃ -
Storage temp.: -30℃~ +80℃ -


Packaging & Shipping

Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton
