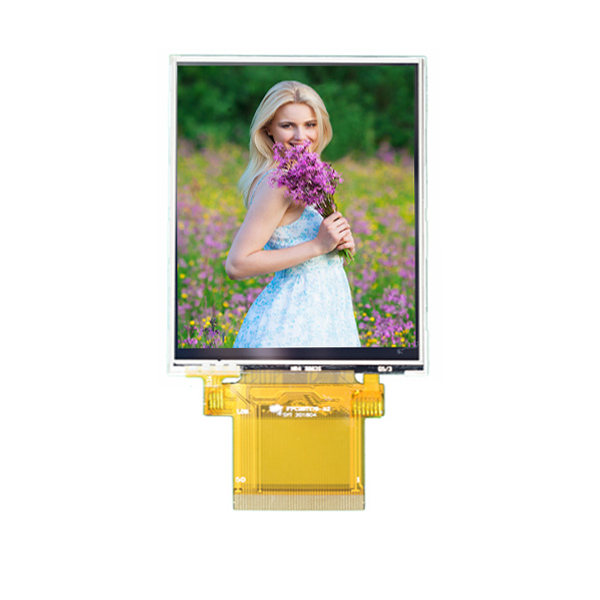

2.8 inch TFT lcd screen
2.8 inch TFT lcd screen

Product Name：2.8 inch TFT lcd screen

Product Description：

Model NO. KD28T178-A
Size 2.8 inch
Display Mode Normally white
 -
Resolution

240*320

dots

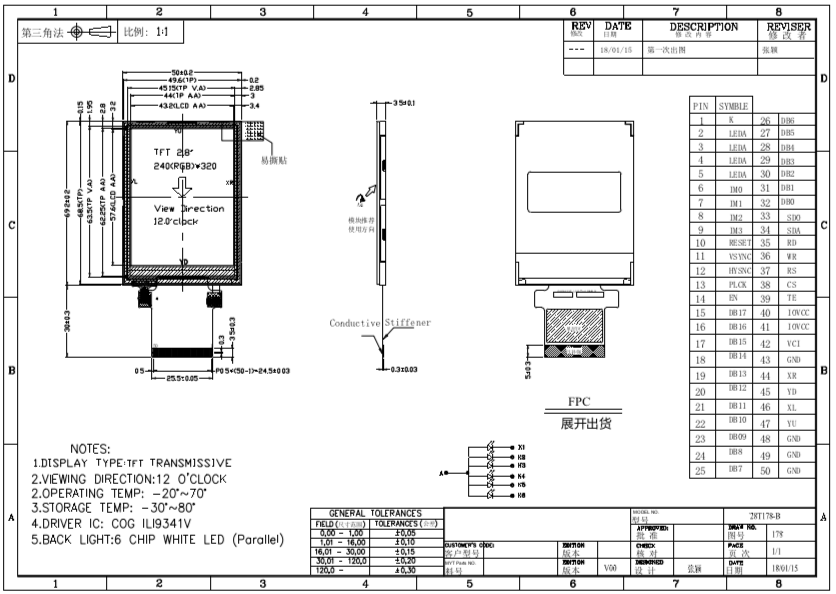

Dimensional outline

50.00(H) x 69.20(V) x2.40(T) (FPC not include)

mm
Active Area (A.A) 43.20(H) x 57.60(V) mm
Pixel size 0.18(H) x 0.18(V) mm
Viewing Direction 12 o’clock -
Touch panel
 Optional -
Driver IC ILI9341V or eqv pcs
Input Data

MCU interface/RGB Interface

-
Back-light 4 Chip white LED (parallel) pcs
Operating temp.: -20℃~ +70℃ -
Storage temp.: -30℃~ +80℃ -



Packaging & Shipping

Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton
